Pinnacle primiTIG ACDC 208P

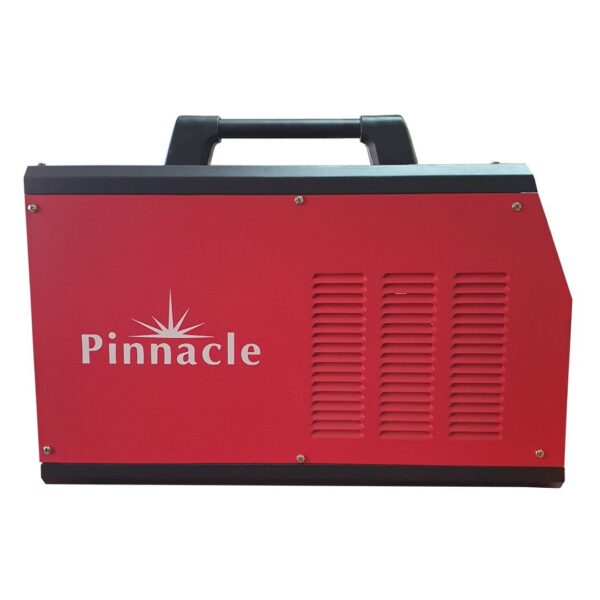

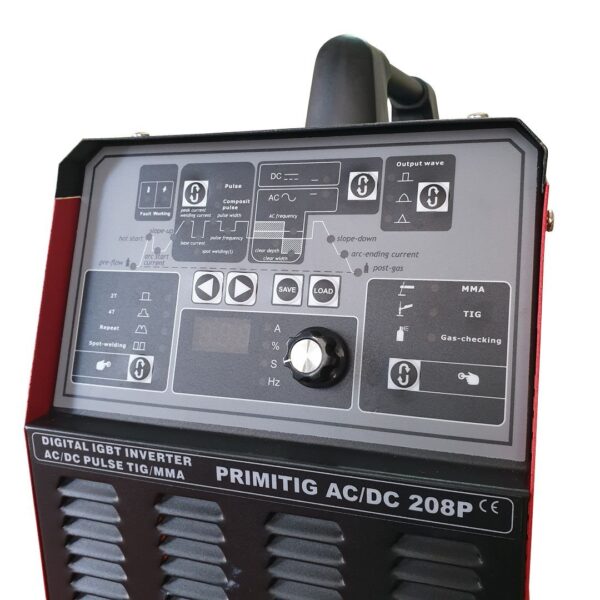

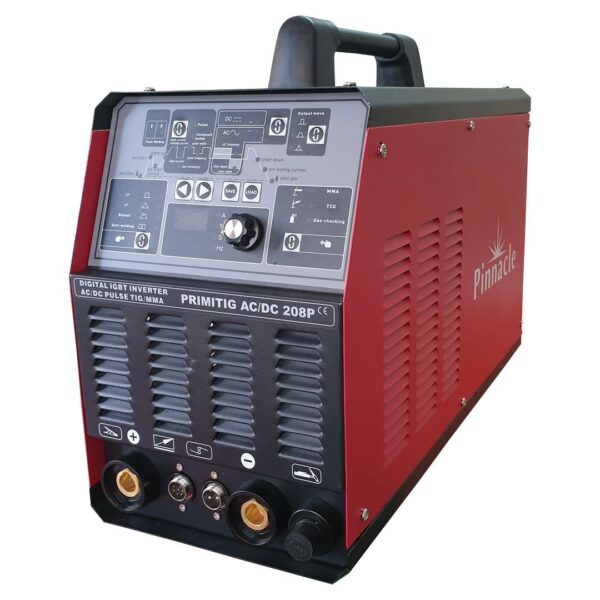

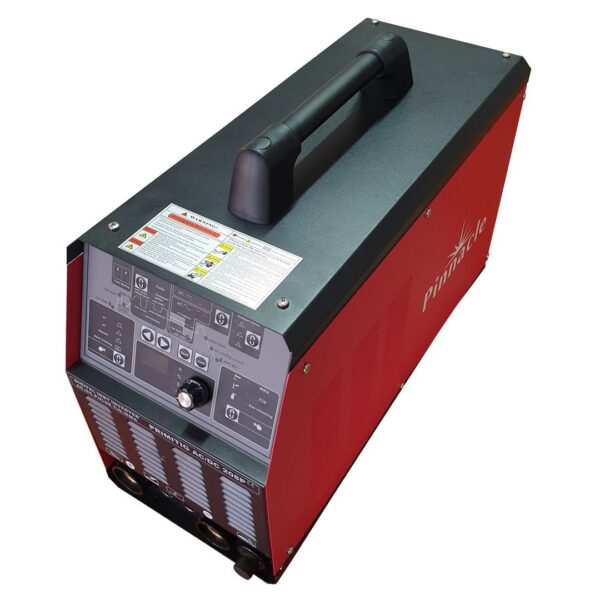

Pinnacle PrimiTIG ACDC 208P TIG Welding Machine
Digital Multi-Process ACDC Pulse TIG/MMA Machine

Features:
– ACDC TIG/MMA/ Pulse 4 in 1, more compact design, easy to carry.
– Microprocessor control; simple operation, better welding performance.
– 10 Programmable slots, save your parameters for specific welding projects.
– Pulsing adds arc stability, reduces heat input and warpage, and can increase travel speeds.
– The unique air duct design; failure rate greatly reduced, extending the service life of the machine.
– Various Output Wave settings for professional welding applications.
– Auto protection against over-voltage and under-voltage.
– Lightning strike, over-current, and over-heat protection.
– Generator Safe.

Specifications:
– Technical Data – PrimiTIG 208P Digital TIG Welding Machine
– Input Power Voltage (V) : AC 220V +/- 15%, Single Phase
– Input Voltage Frequency (Hz) : 50/60
– Rated Input Power Capacity (KVa) : MMA – 4.6 | TIG – 7
– No-Load Voltage (V) : 60
– Output Current Range (A) : MMA – 5-200 A | TIG – 40-200 A
– Duty Cycle (%) : 60% @ 40 Degrees Celsuis
– Pre-flow (s) : 0-10 sec
– Post-flow (s) : 0-10 sec
– Pulse Frequency (Hz) : 0.1 – 20
– Weight (kg) : 14
– Dimension (mm) : 480 x 200 x 295

What’s in the box
1 x 208P ACDC Inverter Power Source
1 x WP-26 4M TIG Welding Torch
1 x Earth Cable

1 x foot control

1 x flow meter
1 x User Manual
