Features:
Advanced IGBT Technology
Dual Function TIG Welding & MMA/ARC Welding
High-Frequency TIG Welding
2T / 4T Operation
Post-Flow Gas Selection, 2.5 – 5 seconds
Digital Screen Display
Includes TIG Torch & Earth Cable
Technical Data
Code 6-1001381
Input Voltage AC 230V ±15%, 1 Phase
Input Voltage Frequency 50/60 Hz
Rated Input Power Capacity MMA 5.3 KVA/TIG 3.3 KVA
Rated Input Current MMA 24 A/TIG 15A
No Load Voltage 55V
Output Current 10-160A
Rated Output Voltage MMA 26.4 V/TIG 16.4 V
Duty Cycle % 60%
ARC-Striking: High-Frequency
Efficiency: 85%
Power Factor: 0.93
Insulation Class F
Protection Class IP21S
Weight 5.3 Kg
Dimension 356 x 153 x 225 mm
What’s in the box
1 x Pinnacle DC200i TIG Welder
1 x WP17V TIG Welding Torch
1 x Earth Clamp Cable

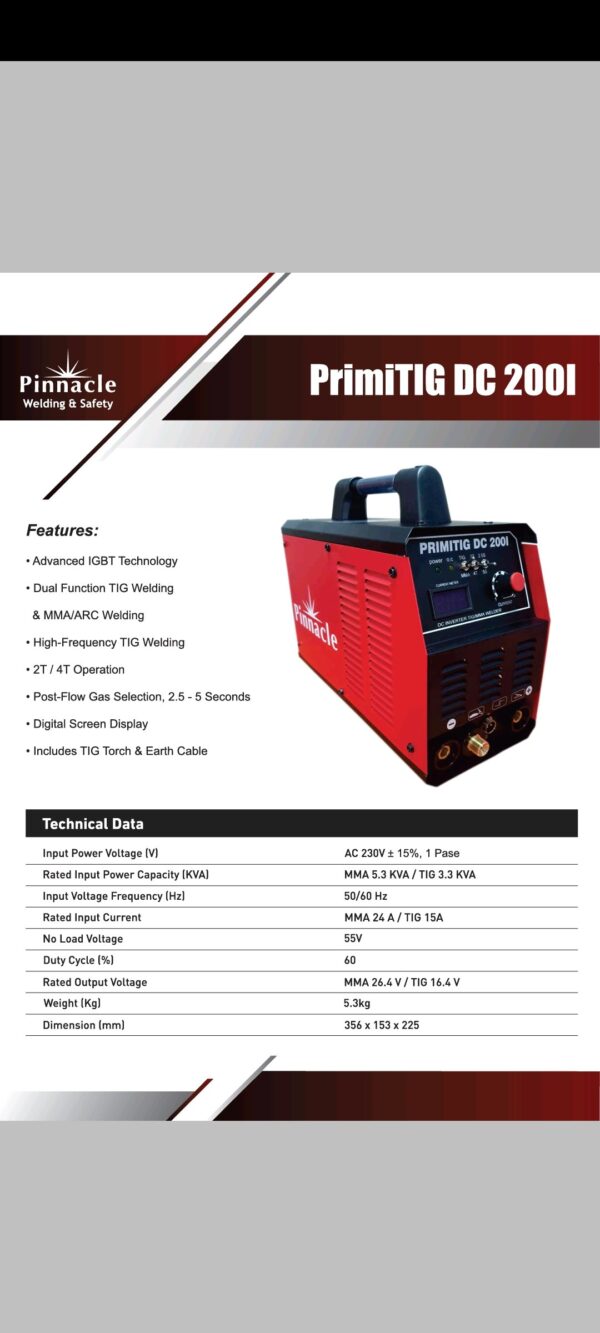

The Pinnacle PrimiTIG DC 200i TIG Welding Machine is a dual-function High-Frequency Start TIG Welding Machine that also has the capability of ARC/MMA Welding functions. With the latest IGBT Technology and Digital Current Display, as well as 2T/4T Functionality and Post-Flow Gas control, 2.5 to 5 seconds. This TIG Welding Machine is Compact and Light Weight yet tough enough for most workshop environments.
The Pinnacle PrimiTIG DC 200i TIG Welding Inverter is ideal for welding Mild Steel & Stainless Steel, however, it is not suitable for TIG Welding Aluminium Steel.
Like this:
LikeLoading…
Weight
7,5 kg
Dimensions
35,6 × 15,3 × 22,5 cm
