The Pinnacle Riland MIG 180PGDM is a light industrial, fully digital pulse MIG Welding Machine. The MIG Welding Machine can complete the following processes, MIG/MIX, MIG/Ar Al, MIG/Gasless, MMA and Lift TIG Function.

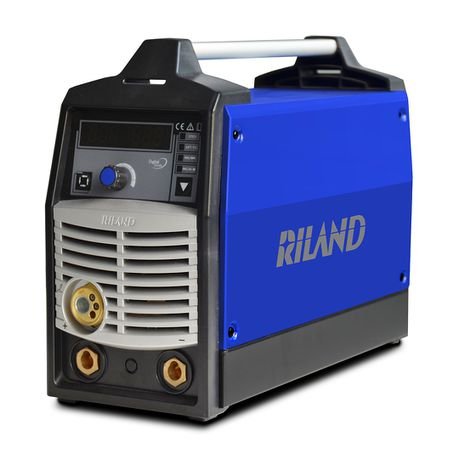

Pinnacle Riland MIG 180PGDM Multi-Process MIG-TIG-ARC Welding Machine

WORLD’S SMALLEST DOUBLE PULSE MIG WELDER

The Pinnacle Riland MIG 180PGDM is a light industrial, fully digital pulse MIG Welding Machine. The MIG Welding Machine can complete the following processes, MIG/MIX, MIG/Ar Al, MIG/Gasless, MMA and Lift TIG Function. The Pinnacle Riland MIG 180PGDM is the world’s smallest MIG Welding Machine with pulse functionality and offers synergic welding, with a built-in CPU that provides self-adaptive ARC Force and Hot Start features.

This single-phase MIG Welding Inverter unit is 180 Amp, with 100% Duty Cycle up to 90 Amps on MIG Welding, 85 Amps on MMA/ARC, and 100 Amps on TIG Welding it is also compatible with 1kg and 5kg wire rolls and offers 2T and 4T function, with a polarity switch for switching between Gas and Gasless Welding. The most compact and versatile MIG Welding Machine on the market.

Processes:
– MIG/MIX
– MIG/Ar Al
– MIG/Gasless
– MMA
– Lift-TIG

Features:
– The smallest MIG Welding Machine with a pulse in the world
– Built-in CPU
– Synergic Welding, voltage and induction micro-adjustable
– 2T/4T Function
– Polarity switch inside MIG Wire chamber
– Self-Adaptive ARC Force & Hot Start
– Anti-Sticking
– VRD Adjustable
– Fan Cooled, reduced noise and dust
– Compatible with 1kg & 5kg Spools
– 220V

Pinnacle Riland MIG 180PGDM MIG Welding Machine – Technical Data

Brand: Pinnacle Riland Welding Machine
Product: MIG 180PGDM
Product Type: MIG Welder, TIG Welder and ARC Welder
Code: 6-10RMIG01
Input Voltage/Phase/Frequency: 220V/1P/50-60 Hz

Amps Input at Rated Output:
MIG: 34A@180A
MMA: 34A@160A
TIG: 27.5A@180A

Output Current/Voltage/Duty Cycle (40°C):
MIG: 90A/18.5V/100% – 180A/23V/25%
MMA: 85A/23.4V/100% – 160A/26.4V/25%
TIG: 100A/14V/100% – 180A/17.2V/25%

Output Range/OCV:
MIG: 50-180A/56V
MMA: 15-160A/56V/17V (VRD)
TIG: 15-180A/17V

Weight 8 kg
Dimension (mm) 386 X 170 X 300

What’s in the box
1 x Inverter Power Source
1 x 3M MIG Welding Torch
1 x 3M Earth Cable
1 x 3M Gas Hose
2 x Hose Clamps
1 x Manual
1 x Torch Spares
